Tech Dev Log | Spatial Memory

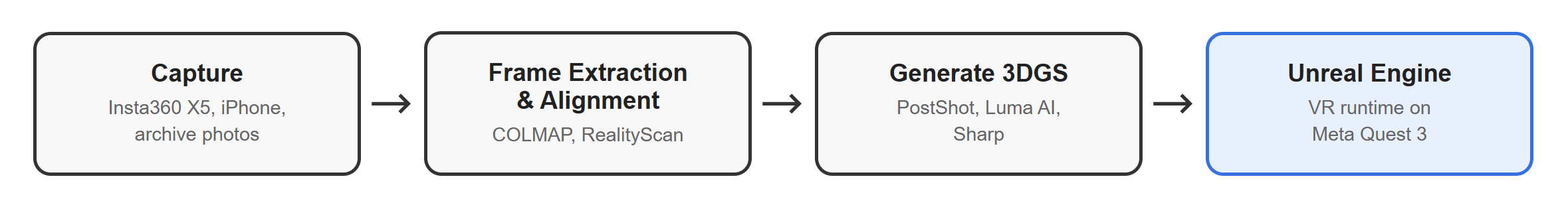

3DGS Source

Source video: IMG_0922.MOV (iPhone)
Location: Brooklyn, NY apartment
Processing: Luma AI
Unreal project path: Content/Movies/IMG_0922.MOV

BP_Clip

Each BP_Clip instance = one memory fragment placed in the level.

Actor Structure

BP_Clip (Actor)
|
+-- Root (Scene Component)
|   = Memory location in the space (e.g., desk surface, window, kitchen counter)
|
+-- Plane (Static Mesh: Plane)
|   Child of Root
|   = The visible frame (video or photo)
|   Material: Dynamic Material Instance
|       Video: Media Texture from Media Player
|       Photo: Texture2D
|
+-- MediaSoundComponent
    = Audio output, linked to Media Player in BeginPlay

Variables (Instance Editable)

Variable	Type	Purpose
`bIsVideo`	Boolean	Photo or video clip
`MediaPlayer`	Media Player Object Ref	MP_ClipXX
`MediaSource`	Media Source Object Ref	MS_ClipXX
`MediaTexture`	Media Texture Object Ref	MT_ClipXX
`ClipTexture`	Texture2D	Photo texture (when not video)
`PlaneSize`	Float	Frame dimensions
`TriggerDistance`	Float	How close viewer needs to be
`ActivationAngle`	Float	Outer threshold in degrees
`FullRevealAngle`	Float	Inner threshold in degrees

Blueprint Logic

Construction Script:

Create Dynamic Material Instance → SET DynMaterial
  → Branch: bIsVideo?
      True:  Set Texture Parameter Value ("BaseTexture", MediaTexture)
      False: Set Texture Parameter Value ("BaseTexture", ClipTexture)

BeginPlay:

Branch: bIsVideo?
  True:
    → MediaSound → Set Media Player (MediaPlayer)
    → MediaPlayer → Open Source (MediaSource)
  False:
    → (nothing)

Note: Play on Open enabled on Media Player asset. No need to call Play in BeginPlay.

Event Tick:

1. Gaze Detection:
   distFactor = remap Distance(Player, Root) from TriggerDistance..0 → 0..1
   angleFactor = remap Dot(PlayerForward, DirToPlane) from cos(ActivationAngle)..1 → 0..1
   openFactor = distFactor * angleFactor

2. Smooth lerp:
   currentOpen = FInterpTo(currentOpen, openFactor, DeltaTime, smoothing)

3. Set opacity:
   DynMaterial → Set Scalar Parameter Value ("Opacity", currentOpen)

4. Video control (if bIsVideo):
   currentOpen > 0.1 AND not playing → Play
   currentOpen <= 0.1 AND playing → Pause

5. Volume:
   MediaSound → Set Volume Multiplier (currentOpen)

Gaze Detection Details

angleFactor uses direction from player to Plane, not Root’s ForwardVector
Combined trigger: openFactor = distFactor * angleFactor gives smooth gradient, not hard on/off
Ease-in curves: t*t*t (cubic) on distFactor, t*t (quadratic) on angleFactor before combining
Smooth lerp via FInterpTo prevents popping on quick head movement

Placement Workflow

Create BP_Clip instance in level
Position Root at memory’s location (desk surface, window, etc.)
Rotate Root so Plane faces natural viewing direction
Adjust PlaneSize
Assign media (set bIsVideo, fill MediaPlayer/MediaSource/MediaTexture or ClipTexture)

Media Asset Naming

One set per clip:

Asset	Naming	Type
File Media Source	`MS_Clip01`	File Media Source
Media Player	`MP_Clip01`	Media Player
Media Texture	`MT_Clip01`	Media Texture

Material: M_Clip

Shared material for photo and video. Both feed into the same BaseTexture parameter.

Properties:

Blend Mode: Translucent
Shading Model: Unlit
Two Sided: Yes

Nodes:

[TextureSampleParameter2D: "BaseTexture"] → RGB → Emissive Color
                                          → A (Alpha)
                                             → Multiply ← [ScalarParameter: "Opacity"]
                                                → Opacity

Opacity = Texture Alpha × openFactor. This single setup handles three cases:

Video: Media Texture has no alpha channel (A = 1), so opacity is purely controlled by openFactor
Regular photo: same as video, A = 1 everywhere, opacity = openFactor
Alpha-masked photo: transparent areas (A = 0) stay transparent regardless of openFactor; visible areas (A = 1) fade in/out with openFactor

Without the Alpha multiply, background-removed photos show black where the background was removed (alpha = 0 but opacity is forced by openFactor alone). Connecting the texture’s Alpha channel is required for transparent backgrounds to work.

BP_ExperienceManager

Manages overall experience arc and space decay.

BP_ExperienceManager
+-- On Begin Play: find all BP_Clip actors in level
+-- Track discovered count (listen for BP_Clip discovery events)
+-- Space Decay:
|   discoveredRatio = discoveredCount / totalClips
|   Adjust 3DGS splat count and size based on ratio
|   Lerp from full fidelity → particle abstraction
+-- Experience Arc:
    Build (timelapse of apartment setup)
    Explore (viewer moves, discovers clips)
    Decay (space dissolves as clips are found)
    Dismantle (timelapse of apartment teardown)

Sun / Sky System

Directional Light pitch rotation = sun position.

Pitch	Time
0°	Sunrise (horizon)
-90°	Noon (directly above)
-180°	Sunset (horizon)
beyond -180°	Night (below horizon)

Components:

Directional Light: rotate Pitch to change time of day
Sky_Sphere: set Directional Light Actor reference. Must call Refresh Material after every rotation change at runtime
Skylight: set to Real Time Capture for auto-updating environment light

Blueprint (Timeline):

Timeline (Float Track: "SunPitch", 0→-180 over N seconds)
  → Make Rotator (Pitch: SunPitch)
    → Dir Light → Set Actor Rotation
      → Sky_Sphere → Refresh Material

Plan: connect Timeline playback position to discoveredRatio from BP_ExperienceManager.

3DGS + Translucent Material

3DGS splats and Translucent materials conflict in rendering order. Translucent planes are invisible when placed inside a 3DGS scene because 3DGS splats render on top.

Fix: Set Translucency Sort Priority on the Plane component. Higher value = renders on top of 3DGS splats. Tried DitheredTemporalAA as an alternative blend mode, but it produces a visible dot pattern. Translucent + Sort Priority is the cleanest solution.

Integrating 2D Media into 3DGS

The 3DGS scene already has heavy texture, fragmentation, and splat artifacts at every edge. Adding rectangular photos with sharp borders looks wrong: the clean edges clash with the organic, broken quality of the 3DGS world.

What works: Alpha-masked (background-removed) photos. With transparent backgrounds, the photo content blends into the splat environment because there are no hard rectangular edges to break the illusion. The visible content (food on a plate, a view through a window) appears to belong to the space.

Design takeaway: Anything placed inside the 3DGS scene needs to be clean and borderless. The 3DGS environment provides all the texture; the inserted media should only show the subject itself.

Technical Notes

Open Source is async: calling Play immediately after Open Source fails. Enable Play on Open on the Media Player asset instead.
Instance Editable: all media variables (MediaPlayer, MediaSource, MediaTexture) must be Instance Editable, or you can’t assign them per-instance in the level.
Sky_Sphere Refresh Material: only updates in editor on manual click. At runtime, must be called via Blueprint after every Dir Light rotation change. Does NOT work in Construction Script for runtime changes.
Room scale: 4x4x4 room, TriggerDistance=500 works well.
Plane orientation: needs Y=90 rotation to stand upright.
iPhone photos: 3024x4032 (3:4 ratio), mix of portrait and landscape.

TS_WidgetCarousel (PuerTS)

Archive selection carousel written in TypeScript via PuerTS. Replaces the original BP_ArchiveCarousel.

Source: TypeScript/TS_WidgetCarousel.ts

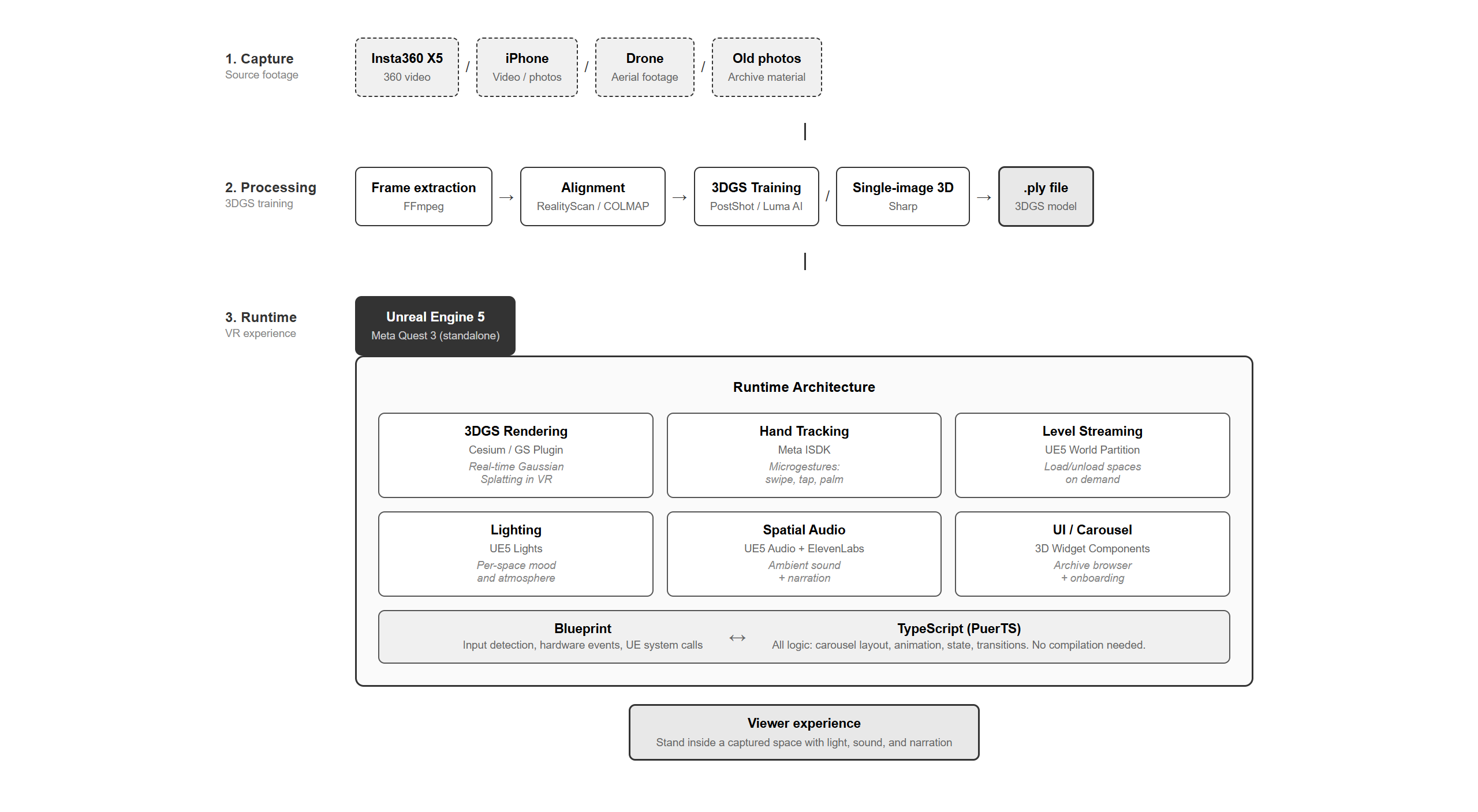

Architecture

Blueprint handles input detection (microgestures, pinch), TypeScript handles all logic. Communication via BP-callable functions (no @no_blueprint decorator).

BP_MRPawn (input detection)
  → IA_MG_L_LeftSwipe → CarouselRef.SwipeLeft()
  → IA_MG_L_RightSwipe → CarouselRef.SwipeRight()
  → Both hands pinch → CarouselRef.UpdatePinchZoom(distance)
  → Either hand release → CarouselRef.EndPinchZoom()

WBP_PalmMenu → Event Dispatcher on Pawn → CarouselRef.ToggleCarousel()

Layout

18 cards (3 rings x 6 cards) on a 180-degree spherical arc. Virtual scrolling: 3 visible rings over 7 data rows with wrap-around.

Parameter	Value
CarouselRadius	110
RingVerticalSpacing	38
CardDrawSize	640 x 360
BaseWorldScale	0.07
ArcDegrees	180
Zoom range	1.0 - 5.0 (default 1.5)

IsdkInteractableWidgetComponent

Replaced standard WidgetComponent with Meta’s ISDK version for native ray + poke interactable support.

Setting	Value	Notes
WidgetScale	1.0	Default is 0.02 - must override
bUseRoundedBoxMaterial	true	Rounded corners
CornerRadius	(30,30,30,30)
BlendMode	Transparent	Masked causes aliasing
TranslucencySortPriority	100	Renders above 3DGS
bCreatePokeInteractable	true	Poke doesn’t work with manual SetWidget (known)
bCreateRayInteractable	true	Ray + pinch works
PointablePlane size	CardDrawWidth * ws * 0.85	Default 20x20 is too small

Card Interaction

Ray + Pinch: works via ISDK. Click fires OnCardClicked delegate.
ThumbTap: works via BP-callable HandleCardClicked(index).
Poke: does not work when widget is created manually with SetWidget (ISDK limitation).
Click dedup: 0.2s same-card filter using GetRealTimeSeconds().
Hover: HandleCardHovered(index) calls SetFocused(true/false) on all cards.

Opacity

Only SetRenderOpacity() on the cached root SizeBox widget works. Other methods (SetTintColorAndOpacity, SetColorAndOpacity) have no effect.

Root widget (WidgetTree.RootWidget) is not available immediately after spawn. Must wait ~30 frames before caching. Implementation delays root caching to frame 30 in UpdateCarousel.

Opacity formula: vertical fade (distance from equator) * horizontal fade (angular distance from center). Cards below 0.05 opacity are hidden entirely.

Level Streaming

HandleCardClicked(index)
  → HideCarousel()
  → Pawn.FadeOut()
  → UnloadStreamLevel(currentLevel, callback)
    → LoadStreamLevel(newLevel, callback)
      → OnLevelLoaded → Pawn.FadeIn()

Uses LatentActionInfo callback pattern for sequencing async load/unload.

PhotoData mapping: array of [filename, "Location, City", "LevelName", texturePath, date], 5-tuple format. Texture paths use prefix constants (W for world/, C for Cover/, D for dynamic/).

HMD Snap

On ShowCarousel(): gets HMD world position and forward direction, places carousel centered in front of viewer. Carousel stays fixed after opening for stable hand interaction.

Pinch-to-Zoom

BP_MRPawn detects two-hand pinch via IsdkHandRigComponent Left/Right. Gets GetSocketLocation("XRHand_IndexTip") from each hand, calculates distance. Sends to UpdatePinchZoom(distance) every frame while both hands are pinching. On release, calls EndPinchZoom().

TypeScript side: first frame records baseline distance + zoom level, subsequent frames scale zoom proportionally to distance change.

Tab System

Three categories: Travel (15 photos), Personal (3), Motion (1, renamed from Dynamic). Swipe up/down switches tabs. No clickable tab buttons.

Tab indicator: single centered WBP_Tab widget, hidden by default. On tab switch, shows current tab name (uppercase, bold) then fades out over 3 seconds.

Dynamic layout via RecalcLayout():

Data Count	Rings	Items/Ring	Vertical Scroll
1-3	1	all	No
4-18	2-3	ceil(n/rings)	No
19+	7 (virtual)	6	Yes (wrap)

Arc degrees scale with items per ring (~30 degrees/card, max 180).

Tab switch animation: cards fade out + slide vertically, content swaps at midpoint, cards fade in + slide back. Speed 4.0 (both exit and enter), ~0.5s total.

Tab label color: fades white to black (not opacity), prevents over-exposure on translucent background. Uses new UE.LinearColor(c, c, c, 1) where c = TabLabelOpacity. Tab radius set to CarouselRadius * 0.8.

Blend Mode

Cards use Transparent blend mode (switched back from Masked). Masked breaks opacity fade for the carousel fade-in effect. Transparent works correctly with SetRenderOpacity.

TranslucencySortPriority: cards = 1, tab label = 2 (reduced from 100/110 to prevent over-exposure).

Carousel Fade-In

On first show (after onboarding), carousel fades in over 2 seconds. CarouselFadeAlpha increments from 0 to 1.0 at 0.5/s per frame. All card opacity is multiplied by CarouselFadeAlpha.

Carousel Lock and Collision

bLocked: prevents ToggleCarousel() during onboarding
UnlockCarousel(): BP-callable, called by onboarding on completion/skip
SetActorEnableCollision(false) in HideCarousel(), true in ShowCarousel()
HandleCardClicked: early return if !bCarouselVisible
ShowCarousel resets to first tab (Travel)

GS Fade System

Controls brightness and audio volume of all CSGaussianActor/CSGaussianSequenceActor instances in the level.

Discovery: duck typing. Iterates all actors, checks for SetBrightness method.

Transition	Target	Speed	Duration
Level load	0 to 1.0	0.33/s	~3s
Carousel open	1.0 to 0.1	0.6/s	~1.5s
Carousel close	0.1 to 1.0	0.6/s	~1.5s

Audio capped at GSFadeAlpha * 0.6. GS actors must have Brightness and AudioVolume set to 0 in editor to prevent flash on level load.

PhotoData

Expanded from 4-tuple to 5-tuple: [filename, label, levelName, texturePath, date]. Card dates displayed via TXT_Date text block.

TS_Onboarding (PuerTS)

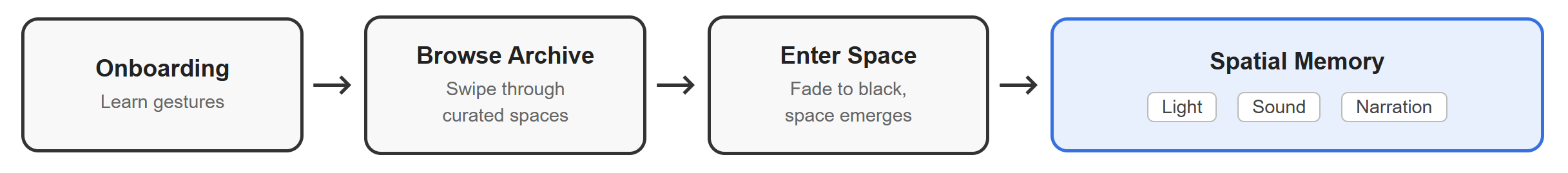

Onboarding flow controller. 4-step walkthrough before the carousel appears.

Source: TypeScript/TS_Onboarding.ts

Steps and Timing

Step	Content	Hold Time	Audio
0 - Welcome	Title + description text	6.0s	S0_welcome_v2
1 - Palm	”Look at your palm” + T1 video	7.0s	S1_palm
2 - Swipe	LR + UD swipe videos (UD delayed 5s)	9.0s	S2_swipe
3 - Farewell	Closing text	6.0s	S3_farewell

1.5s start delay before step 0
Fade duration: 0.8s in/out per step

VR Positioning

SnapToHMD() runs every frame during delay (not just at delay end), so widgets track the headset continuously
Distance from camera: X=120, Z offset=-30
Widget scale: welcome/tutorial/farewell = 0.12, swipe panels = 0.1

Video Tutorials

MediaPlayer + MediaTexture + FileMediaSource per tutorial:

T1 (palm gesture), T2 (swipe left/right), T3 (swipe up/down)
Located at /Game/Movies/

Critical: SetBrushFromTexture crashes with MediaTexture (EXCEPTION_ACCESS_VIOLATION). Must use brush.ResourceObject = mediaTexture instead.

MediaPlayer opens source and sets looping on step entry, closes on step exit.

Voiceover Audio

Recorded via ElevenLabs TTS, split with ffmpeg silence detection
SpawnSound2D per step (returns AudioComponent for control)
CurrentAudio tracked, FadeOut(0.5s) on skip or step transition
Audio files at /Game/Asset/Audio/S0_welcome_v2, S1_palm, S2_swipe, S3_farewell

Skip Button

ISDK ray-clickable, positioned top-right: (120, 35, 0)
Scale: 0.045
On skip: fades out current audio (0.5s), unlocks carousel, shows carousel with fade-in

Carousel Integration

During onboarding: carousel bLocked = true, collision disabled
On complete/skip: UnlockCarousel() then ShowCarousel() (resets to Travel tab, 2s fade-in)
Carousel found via actor tag system (“Carousel” tag)

Desktop Testing Keys

Key	Action
N / M	Cycle card selection
Enter	Click selected card
T	Toggle carousel
Space	Skip onboarding
I / K	Switch tabs up/down
J / L	Yaw rotation
U / O	Zoom in/out

PuerTS Gotchas

Properties initialized in Constructor get cleared by UE; init everything in ReceiveBeginPlay()
npx tsc must be run manually after every TS change (no hot reload)
BP widget variables: (widget as any).VarName
WidgetTree.RootWidget returns null until ~30 frames after creation
SlateColor needs 2 args: new UE.SlateColor(color, ESlateColorStylingMode.UseColor_Specified)
EnhancedInput BindAction not exposed in PuerTS; bridge via BP-callable functions
K2_SetTimer works for custom functions, but function must NOT have @no_blueprint
SetBrushFromTexture crashes with MediaTexture; use brush.ResourceObject = tex
SpawnSound2D returns AudioComponent (controllable); PlaySound2D is fire-and-forget
import { $ref, $unref } from 'puerts' for TArray out params

PuerTS BP Registration

ts_file_versions_info.json: set isBP: true, processed: false, restart editor
BP created at /Game/Blueprints/TypeScript/[TS_ClassName]
“UpdateValidators” warning on new BPs is harmless (UE validator init order issue)

Last updated: 2026-03-11
